Custom Fast Prefabricated Hotel A Frame Cabin With Steel Structure

Fast Prefabricated Hotel A Frame Cabin With Steel Structure By China Factory

Aurora House

Living  3bedrooms  2 bathrooms  0 living room 87.6 m²

Aurora House is an elegant A-type residence created by DEEPBLUE SMARTHOUSE,Total area is about 87.6 ㎡ .

• Product parameters:

  NO	List	Parameter
  1	Model:	DPBL-A11
  2	Length:	7010mm
  3	Width:	9754mm
  4	Height:	7.8m
  5	Ground floor area:	48.64㎡
  6	Loft area:	19.3㎡
  7	Total area:	87.6㎡



Floorplan:

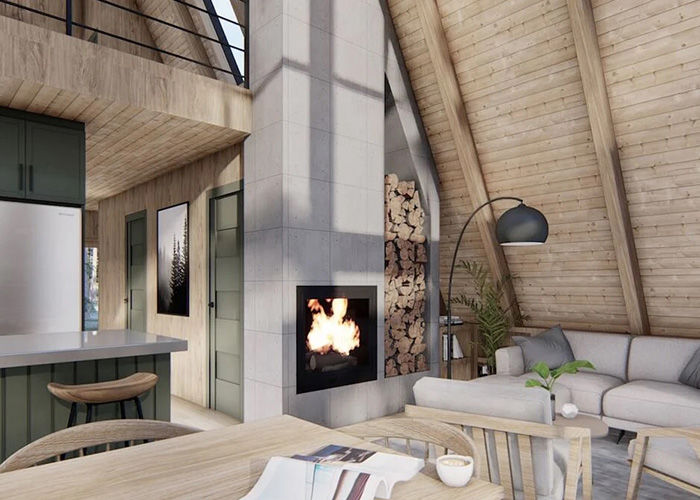

The ground floor offers an open-plan living area that connects seamlessly to the kitchen, creating a warm and inviting environment. Two bedrooms are also located on this level, along with a modern bathroom.

The loft with its 19.3㎡ space, serves as a cozy loft bedroom or multifunctional area, providing additional flexibility to suit various lifestyles.

01

Optimal integration with the landscape

The house occupies an optimal area on the land plot and improves the ergonomics of the general plan.

02

Ergonomics of interior spaces

The house has simple and convenient internal layouts, designed considering the diagrams and routes of movement.

03

Fast construction

It can be installed in the shortest time possible.

Quick Detail:


Description:

Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: PVC/Gypsum board+others
Roof: colorbond
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure


Applications:

the toilet, washbasin, shower, kitchen, study room etc.


Specifications:

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.


Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Company Introduction

Deepblue Smarthouse was established in the city of NINGBO, CHINA in 2009, thriving and expanding globally being located just 15 minutes from one of the world’s busiest ports - PORT NINGBO. Providing clients with dynamic, superior & cost-effective solutions utilizing light gauge steel frames for housing and commercial projects. Whilst many claims to be professional housing manufacturers, Deepblue never rest, but stand firm with partners and customers delivering turnkey solutions that are code compliant for your country, this commitment to excellence has taught, that the long term knowledge and experience, makes Deepblue the leader in this industry.

Deepblue Smarthouse is focused on providing its client with professional smart housing solutions through products that result in unprecedented customer satisfaction and long-term relationships that allow us as partners, to deliver smart houses for the world!

Our Services

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house, light steel structure, Tiny House on wheels, social house, apartment building, commercial building...

Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.
