Prefabricated Construction Building House Kit With Light Steel Frame House Three Or Four Bedrooms Villa

Prefabricated Construction Building House Kit With Light Steel Frame House Three Or Four Bedrooms Villa

 4 bedrooms  5 bathrooms 1 car spaces 302 m²

One of Deepblue Smarthouse’s most popular modern house designs, the intelligently designed Gandario delivers a selection of flexible house plans that bring families of any size together. Perfect for those looking to knock down and rebuild, this distinctive home offers relaxing living areas downstairs and cozy bedrooms upstairs.

• Flexible home plans let you add an extra downstairs bedroom, so there’s room for your family to grow.
• Make this home your own with a choice of front or side entrances.
• Create memorable moments in the spacious kitchen, dining, and entertaining areas.
• Full bathroom facilities on the ground floor mean you can keep the ensuite all to yourself.

Floor plan

• Welcoming side entrance to the home.
• Each bedroom's own bathroom guarantees privacy.
• The living rooms on the first and second floors meet the different needs of the family.
• Second-floor void allowing light to flow through the home.

Product Description:

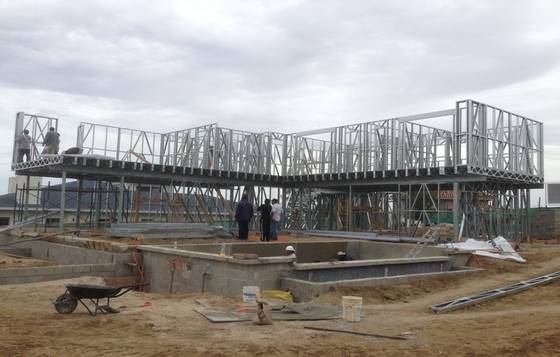

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

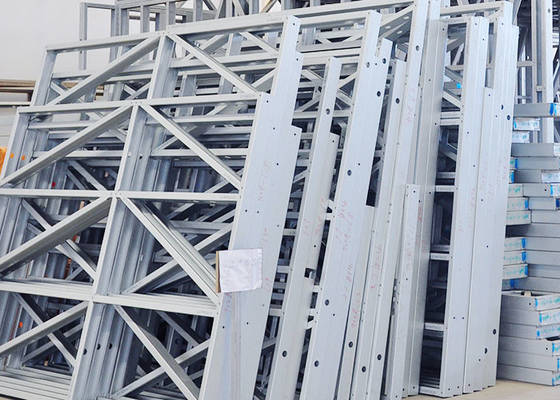

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows

11.interior door: painted wood door

12.bathroom: shower, washbasin, toilet included

13. roofing: corrugated steel roofing with the gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Quick Detail:

Floor/foundation material: laminate flooring/wooden flooring

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Why Steel?

Steel is 100% recyclable (in its purest sense) and has a virtually infinite life span; it’s the most recycled product on the planet. Termite treated timber is un-recyclable (straight to landfill) and almost all other timbers are only down-cyclable.

Steel is 100% termite PROOF, requires $0 of termite treatment, and $0 of ongoing termite maintenance.

Steel is 100% non-combustible, it will not burn or ‘char’ and it will not contribute to a fire or the spread of fire. In a bush-fire, an ember attack to a steel house frame and roof space will not ignite the frame.

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Material Details:

What can we do for you?

Deepblue Smarthouse uses the most advanced steel framing system available in the world today, combining design and engineering software with an automated roll former to produce wall frames, roof trusses, floor joists, and panels quickly and accurately.

With our broad experience, we offer innovative solutions to your challenges.

We manufacture for all segments of the building industry, including commercial buildings, light steel frame, villas, kit homes, granny flat, steel buildings, affordable housing, portable house, mobile house, foldable house, bungalow, investment housing, low-cost housing, high-end bespoke homes, apartment multi-residential, owner builder, cladding and façade builders and tiny house on wheels.

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many buildings.

Your first choice, The best-prefabriated house factory in China, Deepblue Prefabricated house.
